ALU Spirit levels - description

LAG: Flat aliminium profile

Dimension: 48 x 22 mm
Weight: 0,56 kg/m.
Models: LAGE (silver anodised), LAGB (colour powder coated).
LAT: Flat, heavier aluminium profile

Dimension: 48 x 22 mm
Weight: 0,61 kg/m.
Models: LATE (silver anodised), LATB (colour powder coated), LATZ (gold anodized)..
LAR: Grooved aluminium profile

Dimension: 48 x 22 mm
Weight: 0,56 kg/m.
Models: LARE (silver anodised), LARB (colour powder coated).
LAP: Profile for EXACTA level

Dimension: 60 x 24 mm
Weight: 0,90 kg/m.
Model: LAP (colour powder coated).
LAD: Extra strong aluminium profile

Dimension: 48 x 22 mm
Weight: 0,75 kg/m.
Model: LADZ (gold anodized)..
LAU: Aluminium profile U

Dimension: 48 x 22 mm
Weight: 0,56 kg/m.
Model: LAUB (colour powder coated).

PROFILE COATINGS

SILVER ANODISING GOLD ANODISING YELLOW POWDER COATING, RAL 1021 RED POWDER COATING, RAL 2002 OTHER COLOURS BY AGREEMENT

**Note: When ordering colour powder coated levels, it is necessary to specify the exact colour!

TYPES OF PLEXIGLASS VIALS

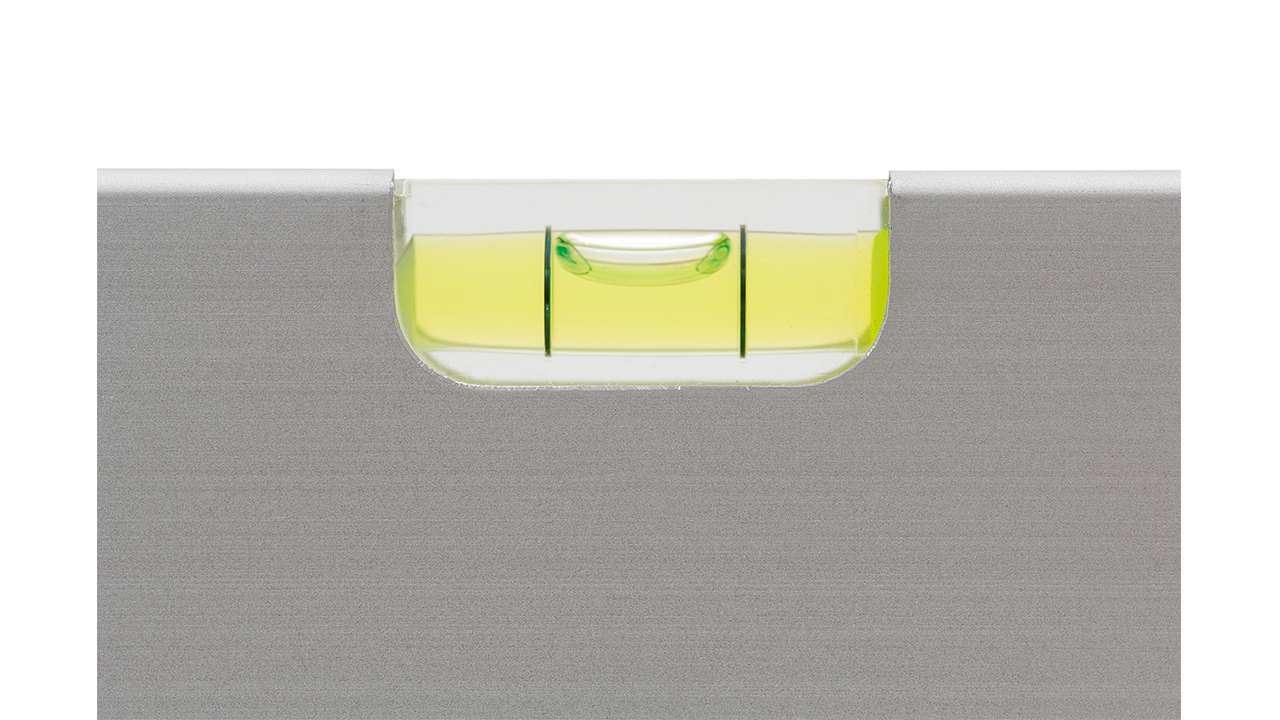

Horizontal plexiglass vial, stable mechanical fitting.

For installation with the following types: LAG,LAR and LAD.

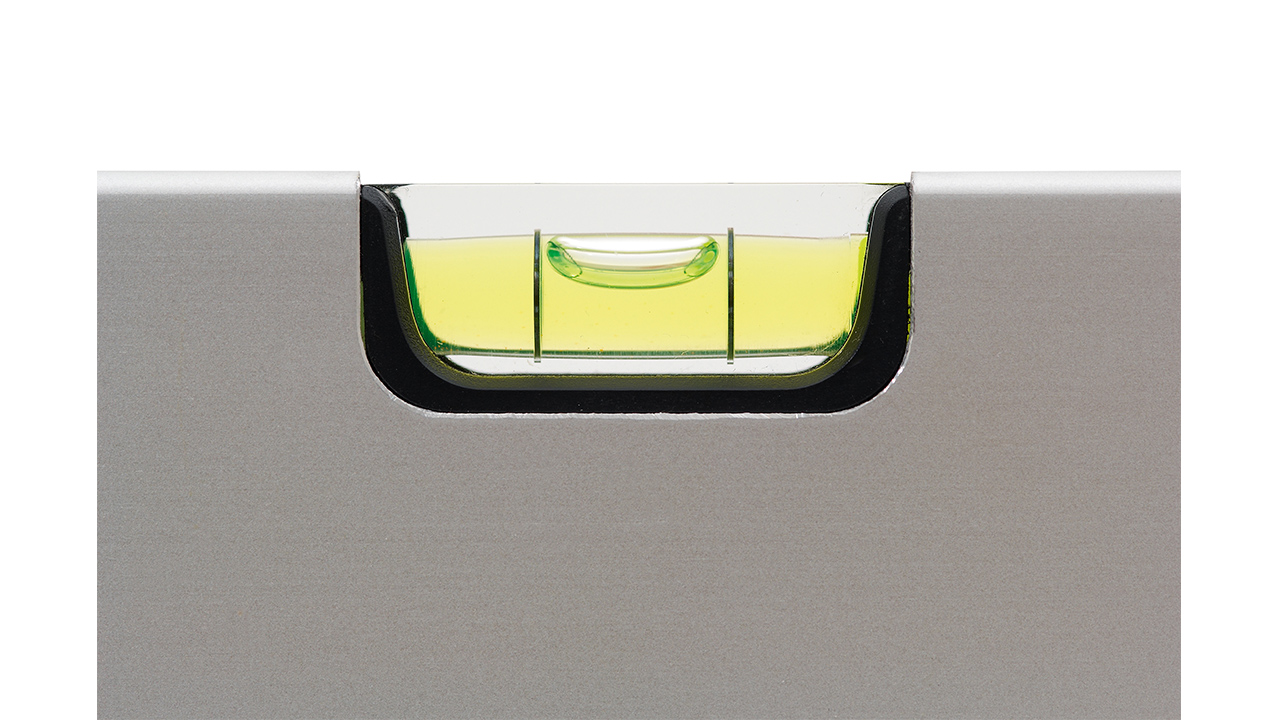

Horizontal plexiglass vial, stable mechanical fitting, with a small plastic rim.

For installation with the following types: LAG,LAR,LAT,LAP

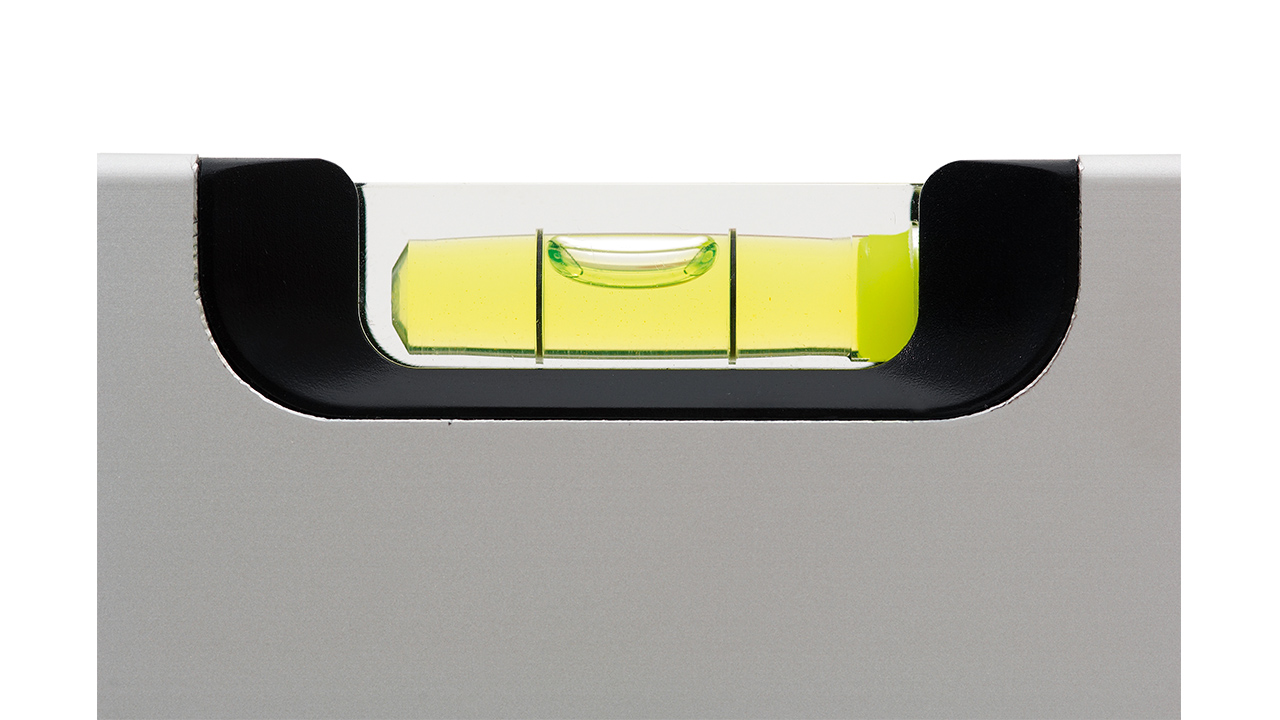

Horizontal plexiglass vial, stable fitting with ultrasonic welding.

For installation with the following types: LAG,LAR,LAU

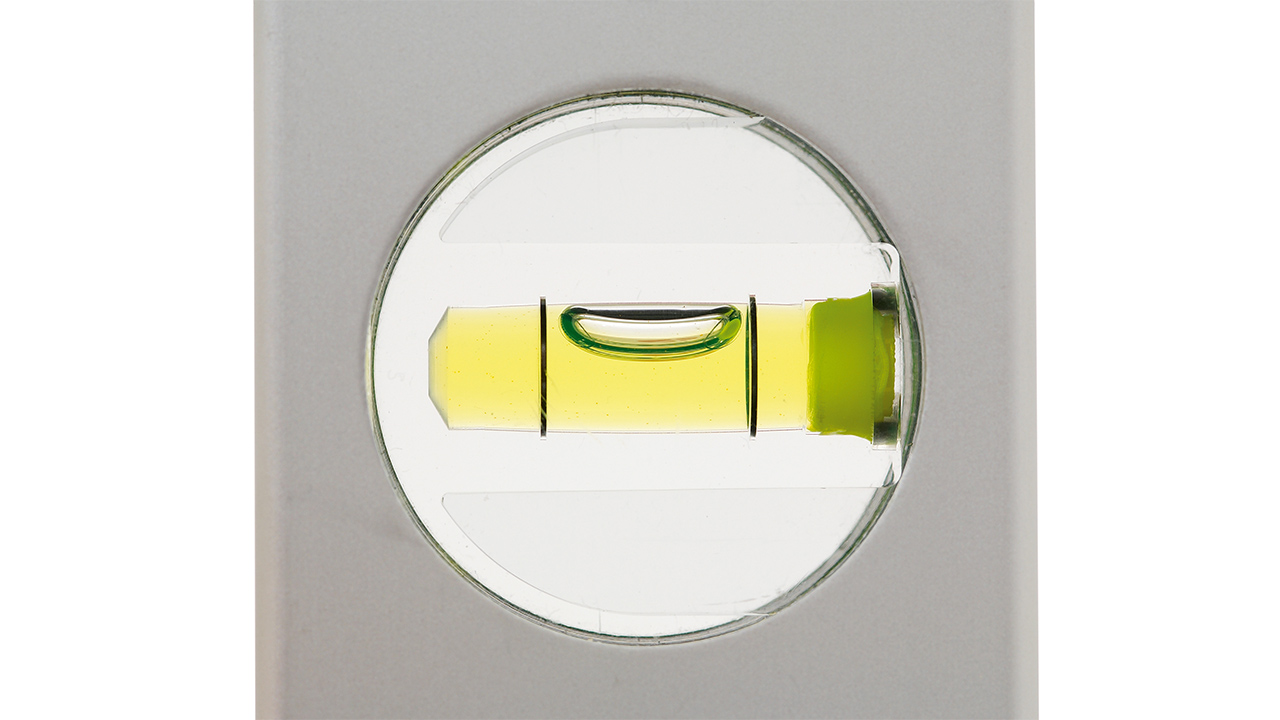

Round-vertical plexiglass vial, stable fitting.

For the use with the following types: LAG,LAR,LAU,LAT,LAD,LAP, as a vertical vial or vial with 45* inclination.

LENGTHS

20 cm, 30 cm, 40 cm, 50 cm, 60 cm, 70 cm, 80 cm, 100 cm, 120 cm, 150 cm, 180 cm, 200 cm.



SUPPLEMENTS ON ALU- SPIRIT LEVELS

Magnets

Optional installation into LAT and LAD types beginning from 40 cm length. Levels up to the length of 120 cm have 2 strong magnets and those from 150 cm length 4 strong magnets installed. They ensure safe fastening to the metal groundwork. When ordering, please add letter M to the end of the code.

Graduation

Optional printing of mm-graduating up to the length of 100 cm on LAG, LAR, LAU, LAT, LAD types of alu-spirit levels. When ordering, please add letter S to the end of the code.

Hanger

Optional plastic hanger with Euro-hole on end caps on all types of alu-spirit levels. When ordering, please add letter O to the end of the code.

Additional marking rings in horizontal vial

Optional inclusion of two additional marking rings for measuring of 2% incli- nation in all types of horizontal vials.
Note: Available on request.

Printing of costumer logo

Optional printing in one or more colours for customer logo.
Note: Available on request.

Horizontal vial with fluorescent background

Optional inclusion of fluorescent back- ground in all types of horizontal vials. Allows measuring also in places lacking the light.
Note: Available on request.

Quality measuring tools since 1904
